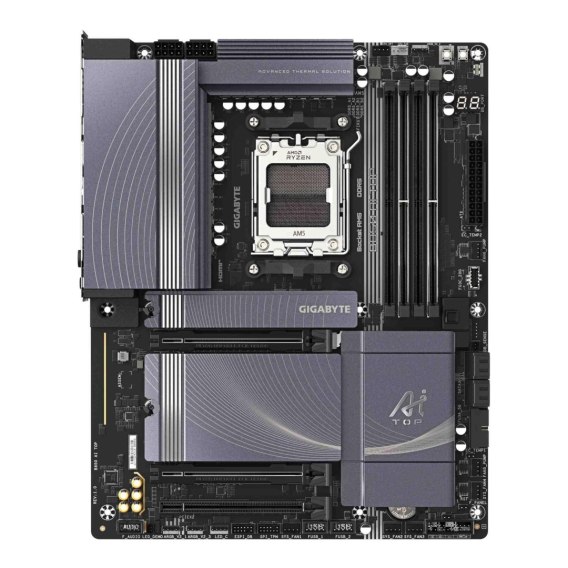

Płyta Gigabyte B850 AI TOP /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/WiFi/BT/AM5/ATX

Gniazdo procesora: Socket AM5

Obsługiwane typy procesorów: AMD Ryzen™

Uwagi do procesora: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Format płyty: ATX

BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset płyty głównej: AMD B850

Ilość złącz pamięci DDR5: 4

Maksymalna wielkość pamięci: 256 GB

Tryb pracy pamięci RAM: Dual Channel

Standard pamięci: DDR5-8600 (OC), DDR5-8400 (OC), DDR5-8266 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600 (OC), DDR5-5200, DDR5-4800, DDR5-4400

Uwagi do pamięci RAM: Support for ECC and non-ECC Un-buffered DIMM memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme, Memory Profile (XMP) memory modules

Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0,1,5,10

Uwagi do kontrolera SATA: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors

Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)

Gniazda karty graficznej: USB Type-C, HDMI

Uwagi do karty graficznej: Integrated Graphics Processor with AMD Radeon™ Graphics support:, USB4® Controller:, - 1x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video, outputs and a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version and HDR, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR, Support native HDMI 2.1 TMDS compatible ports, Graphics specifications may vary depending on CPU support., Support for up to quad-display at the same time

Zintegrowana karta dźwiękowa: Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC

Gniazda karty dźwiękowej: 2x Audio Jack, Wyjście optyczne S/PDIF, Wewnętrzne gniazdo audio przedniego panelu

Złącza PCI Express x16: 3

Uwagi do złącz PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX8 slot shares bandwidth with the PCIEX16 slot, The PCIEX16 and PCIEX8 slots can only support a graphics card or an, NVMe SSD, 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode, The PCIEX8 slot become unavailable when an AMD Ryzen™ 8000 Series-Phoenix, 1/ Phoenix 2 processor is used., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2), The PCIEX2 slot shares bandwidth with the M2C_SB connector

Port LAN: 2x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell® AQtion AQC113C)

Maksymalna ilość portów USB 2.0: 8

Maksymalna ilość portów USB 3.x: 11

Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C

Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)

Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be

Port Bluetooth: Bluetooth V5.4

Uwagi do WiFi / BT: Support for 11be 160MHz wireless standard

Port PS/2: Brak

Port szeregowy (COM): Brak

Port równoległy (LPT): Brak

Inne porty i gniazda: CPU fan header, CPU fan/water cooling pump header, 4x system fan headers, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, Power-on button(s), 2x temperature sensor headers, Przycisk Q-Flash Plus, 2x SMA antenna connectors (2T2R)

Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)

Wymiary [S x W] (mm): 305 x 244

Opakowanie: BOX

Zawiera baterię / akumulator: Tak

Informacje dodatkowe: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Support for Windows 11 64-bit, Bundled Software:, - Norton® Internet Security (OEM version), - LAN bandwidth management software
